Item Description
JPLS-3000 is a Hydraulically balanced, chrome plated spool and detent
release pressure adjustable from 1,000 to 2,000psi. Recommended for
systems flows up to 25 GPM. The JPLS-3,000 releif valve is adjustable
up to 2,500psi. Tandem center spool (in Nuetral Position, both work
ports blocked, the pump unloads to tank. Ideal for Log Splitter Applications.
- Maximum pressure 2,750 PSI
- Max Tank port pressure 150PSI
- Max Flow Rating 25 GPM
- Relief Valve Setting 2,250 PSI
- One Position pressure release detent with Spring Center to Neutral
- Recommended Filtration ISO 4406 19/17/14
- Max Operationg Temp 180 deg F
- In Exposed Applications do not mount spool Vertical and handleed down
- Weight: 10lbs

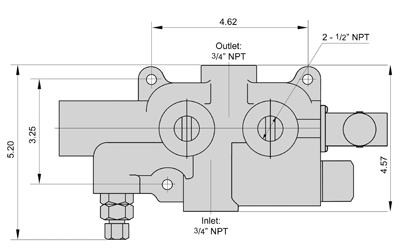

- * Also available with 3/4" Female NPT Ports upon request.
Log Splitter Control Valve
